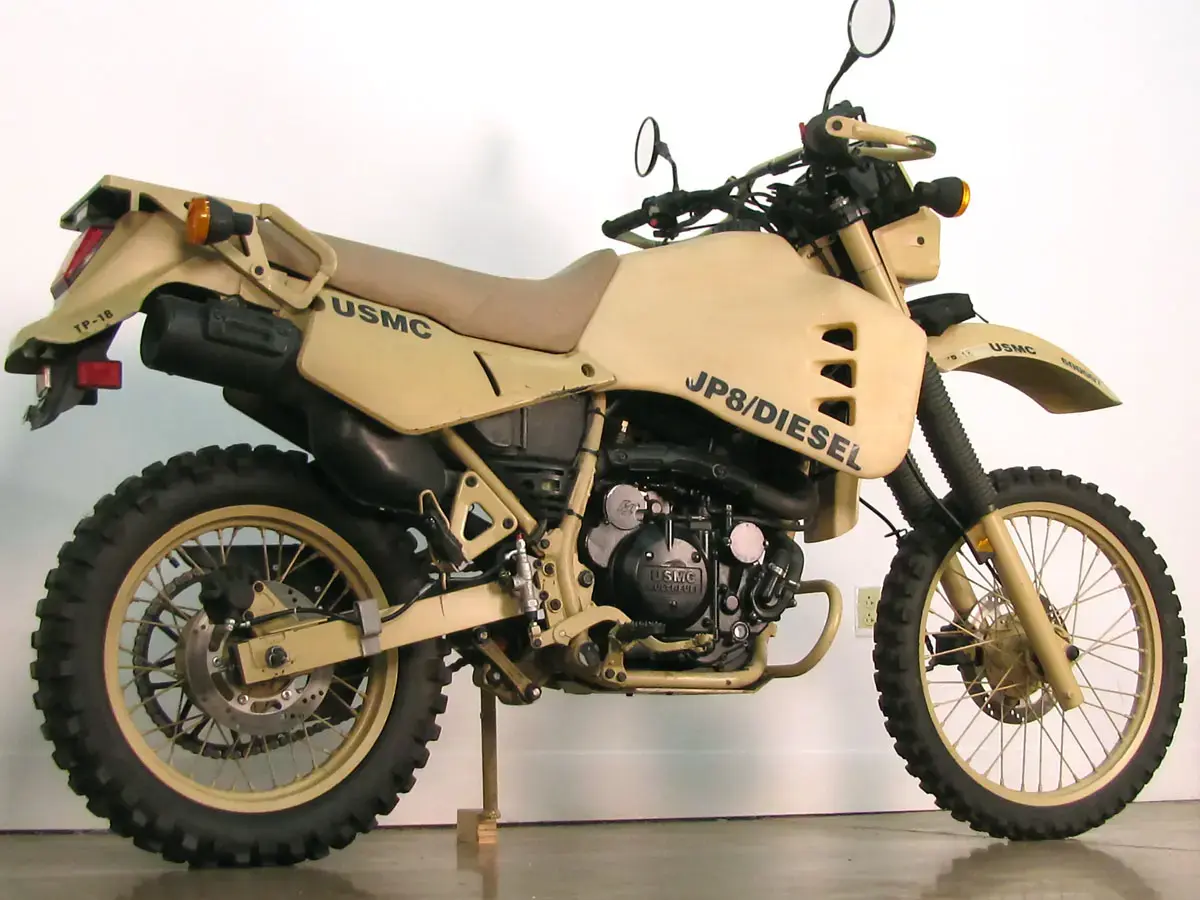

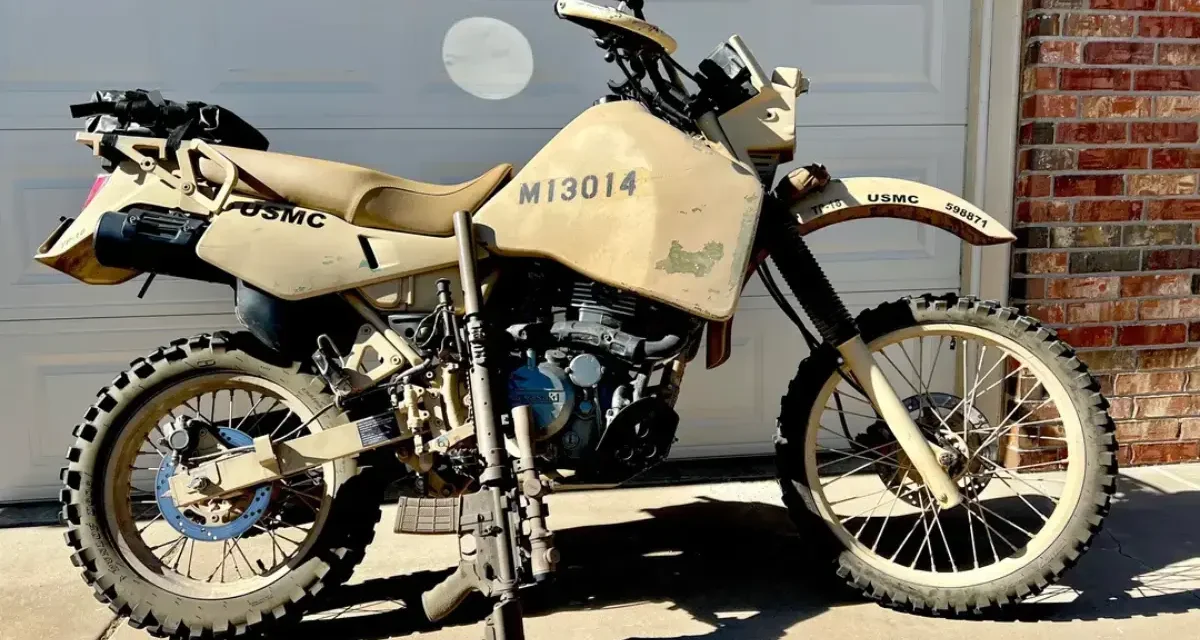

Imagine riding across desert dunes at dawn on a motorcycle powered not by gasoline, but by the same jet fuel that prop stealth bombers. The Hayes M1030—born from a humble Kawasaki KLR650 and reborn with a diesel heart—epitomizes battlefield engineering.
By running on JP-8, diesel, biodiesel, and more, it slashes logistical complexity, stretches range beyond 500 miles, and slams groundwater crossings two feet deep. It’s a marvel of compact, high-compression design built to meet NATO’s single-fuel mandate while delivering robust off-road performance.
Built under the Marine Corps and HDT Partnership
In the late 1990s, the U.S. Marine Corps sought a reconnaissance bike that would run on the same fuel as tanks and helicopters. Hayes Diversified Technologies (HDT) teamed with Cranfield University’s Dr. Stuart McGuigan and engineer John Crocker to reengineer the KLR650’s air-cooled gasoline engine into a liquid-cooled, indirect-injection diesel unit.
“The motorcycle also had to meet strict NATO requirements for all armed forces to operate…on either diesel fuel or aviation grade kerosene,” Crocker explains. “This capability has major logistic advantages…And their lower flammability…greatly reduces fire hazards.”
Technical Transformation
Under HDT’s hood sits a 584 cc single-cylinder thumper (later expanded to 670 cc in the M1030M2). With a four-valve, double-overhead cam head and compression ratios soaring above 18:1, it squeezes out 28 hp and 33 lb-ft of torque in M1 guise—enough to hit 0–30 mph in 3.3 seconds and top out near 90 mph.
Its pumping heart delivers up to 96 mpg at steady cruise, translating to a staggering 408 miles on its 4.2-gallon tank. For contrast, the gasoline KLR650 manages just half that range.
Salt-flat legend Fred Hayes himself tested the machine at Bonneville in 2004, clocking 85.5 mph on stock gearing despite rain-soaked flats. But this wasn’t about outright speed; it was proof that a diesel motorcycle could be mission-ready.

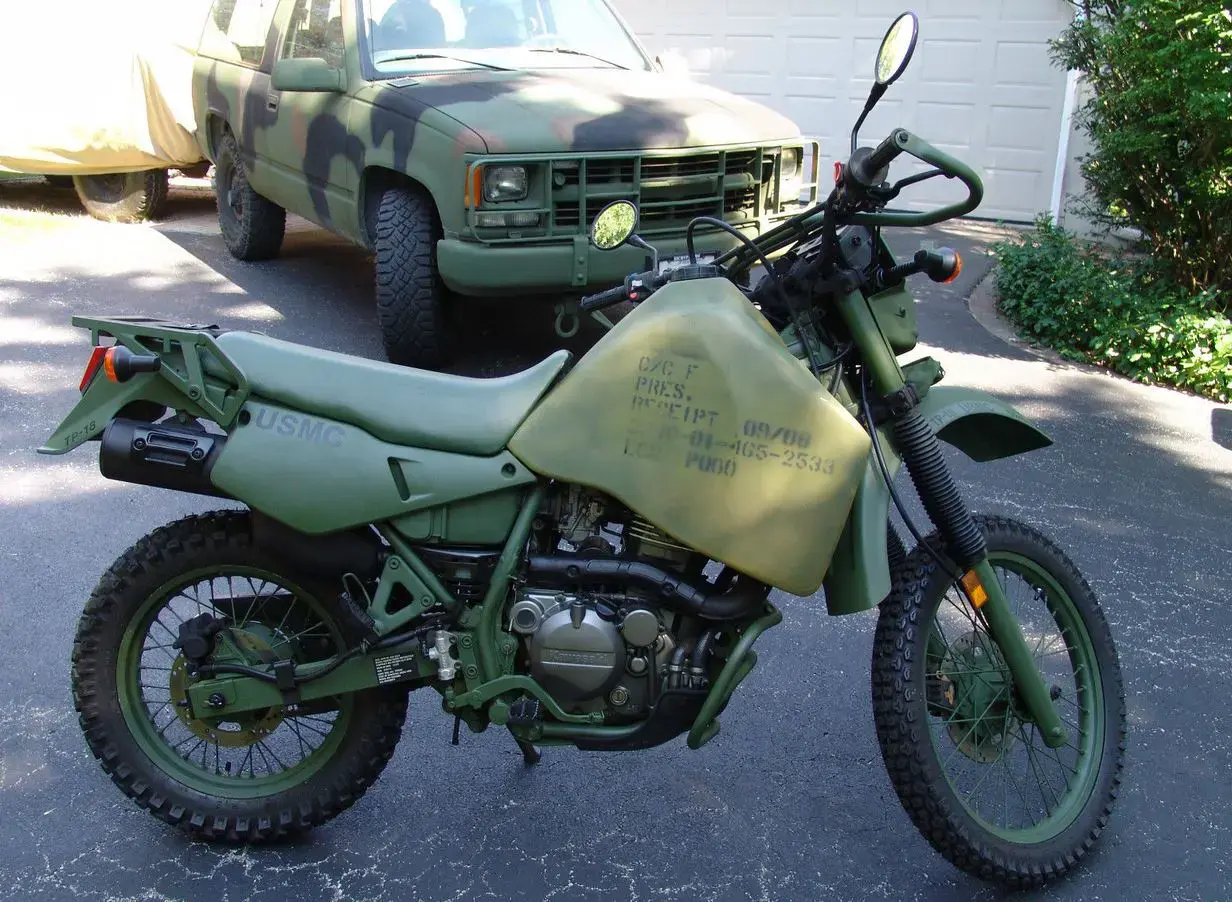

HDT’s next iteration, the M1030M2, bolted on MAC-Ci multifuel technology, bumped displacement to 670 cc, and added IR-capable blackout lighting, a reinforced chassis, and improved suspension, all while sprinting to 95 mph on JP-8 and leaving 300 miles of range behind.
Battlefield Provenance

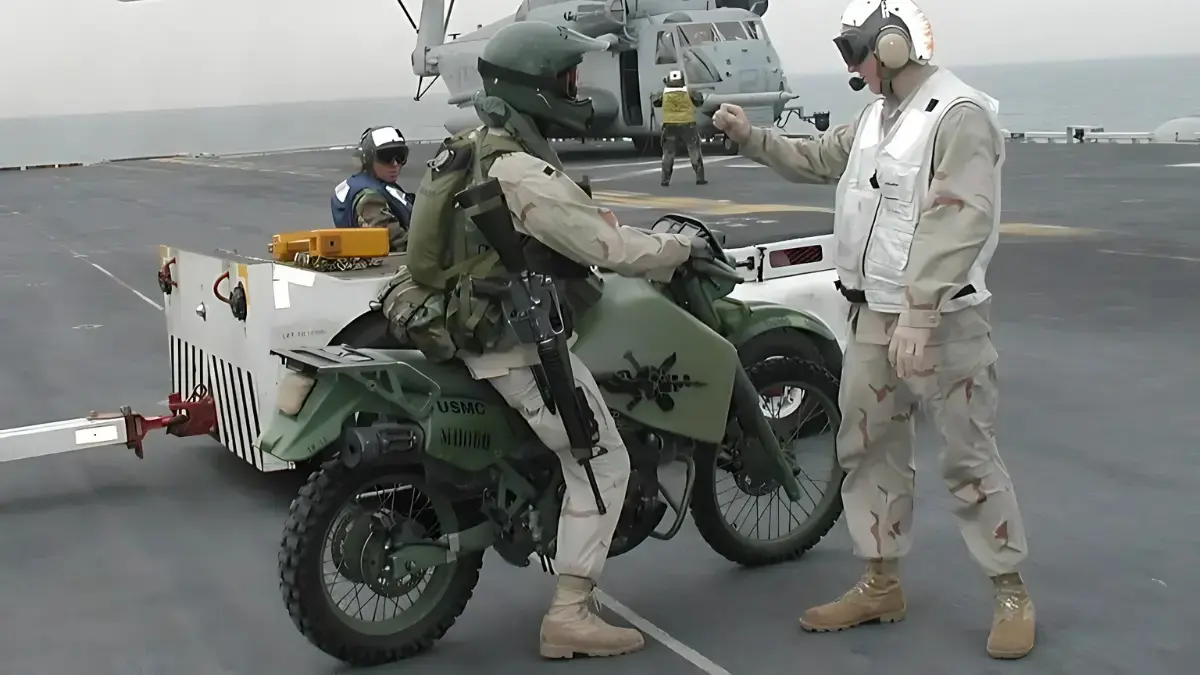

On the ground, Marines raved. In Iraq and Afghanistan, a single diesel-powered scout could roam for days without resupply. Reddit veteran “razakain” recalls his M1030M1 covering 600 miles on one tank during a training exercise—and all while ferrying 50 lb of gear over rocky wadis. The diesel’s low-end torque is ideal for hauling through sand traps and inclines where a peaky gas motor would stall.
Yet these bikes are rare—and fiendishly complex. Civilian ownership runs into parts scarcity and a steep learning curve. As one HDT engineer cautioned, misuse of the compression-release to kill a diesel runaway can slam valves into pistons—a design issue that demands respect for this high-compression engine.
Rick, the Bearded Mechanic’s go-to HDT alumnus, warns newcomers: “If you’re not careful bleeding air or priming fuel, you’ll shear the starter or burn out the precombustion chamber. It’s not a weekend project.”
Still, for engineers and gearheads, the M1030 represents pure innovation. By marrying military logistics with lightweight motorcycle design, HDT created the world’s first multi-fuel combat bike—and proved that diesel on two wheels isn’t just possible, but exceptionally practical.
As HDT explores civilian versions—complete with a tan-finish waiting list and a $18,500 price tag—one question remains: what’s next for diesel motorcycles? Will we see electric-assist diesel hybrids or even smaller displacement multifuel units? The M1030’s legacy suggests that, when necessity demands, engineers will always find a way to push the boundaries of fuel, form, and function.
What would you tackle with a 500-mile stealth ride? Share your ideas below—just be ready to explain how you’ll keep those valves in time.
