Yes, motorcycles have alternators, but they’re not the belt-driven type you’d find in cars. Instead, bikes use a stator (fixed copper coils) and rotor (spinning magnets) to create electricity. Paired with a voltage regulator (R/R), this system powers everything from your headlight to your bike’s electronics. Still, riders often get these components wrong. Let’s bust seven myths you might still believe.
Myths about Motorcycle Alternators

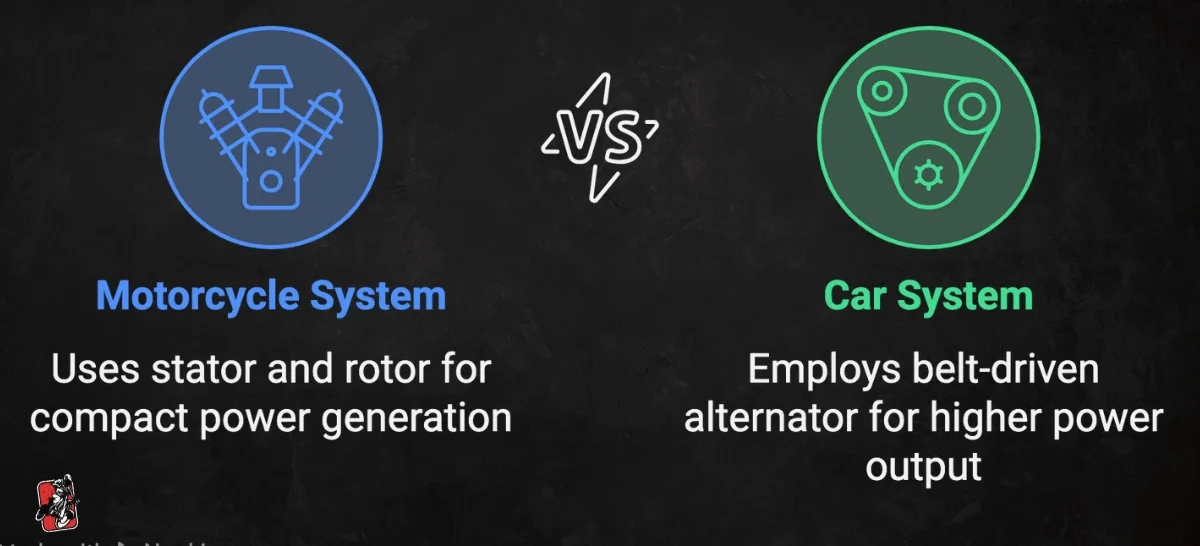

Motorcycle stator vs Car alternator
1. Motorcycles Use the Same Alternators as Cars
Reality: Nope—they’re fundamentally different beasts.
While cars use self-contained alternators (with electromagnet rotors and built-in voltage regulation), most motorcycles rely on a stator and permanent magnet rotor combo. This setup lives inside the engine, bathed in oil for cooling, and sends raw AC power to an external regulator/rectifier (R/R) to convert it to DC.
Why? Motorcycles prioritize compact size and weight savings. As noted in BMW and Harley-Davidson designs, squeezing a car-style alternator into a bike would add bulk and complexity. Plus, permanent magnets mean the system can’t “throttle“ output like cars do—it’s always generating max power for its RPM.

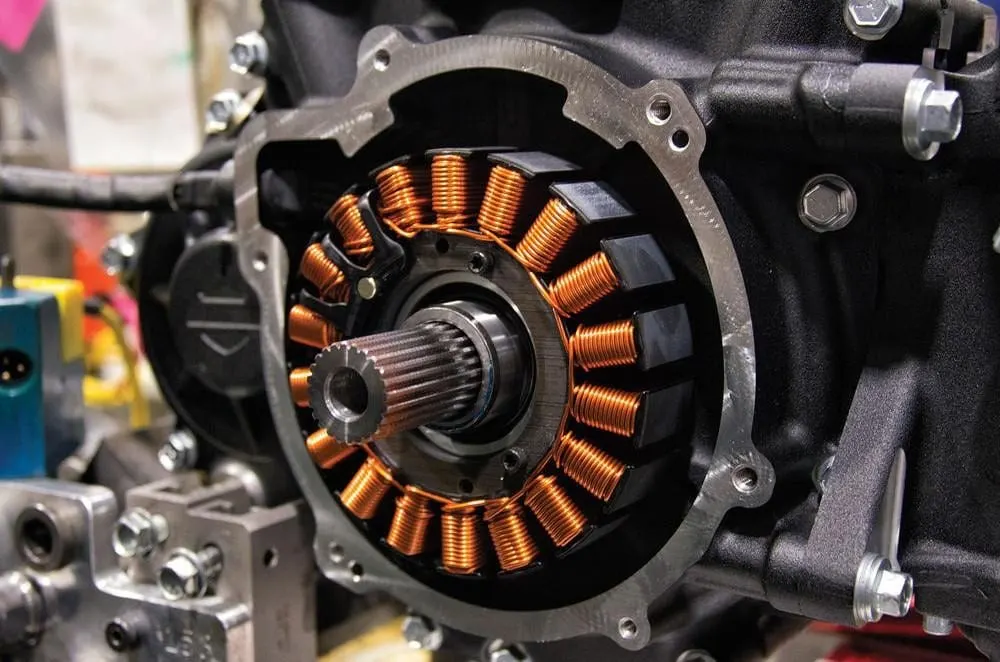

Motorcycle Stator
2. More RPMs Always Mean Better Charging.
Reality: High RPMs can actually fry your system.
Yes, your stator’s output scales with engine speed (e.g., a Royal Enfield 650 makes 156W at 1,100 RPM vs. ~250W at 3,000 RPM). But here’s the catch: At highway speeds, that excess energy gets dumped as heat by the R/R.
Traditional “shunt-type“ R/Rs (common on older bikes) literally short-circuit unused power, which is why riders on 90s Hondas or Harleys often find melted connectors or cooked stators after long rides.
3. All Motorcycle Charging Systems Are Created Equal
Reality: Output varies wildly—adventure bikes vs. dirt machines don’t play the same game. Check the specs:
- A KTM 350 EXC-F dirt bike struggles with 196W—barely enough for stock lights.
- BMW’s R1300GS churns out 650W, perfect for heated gear and accessories.
- The 2022 Kawasaki KLR650 upgraded to 350W, freeing up 80W for add-ons.
Yet manufacturers often omit RPM-specific data. That “500W“ sticker is useless if 80% of it only kicks in at 5,000 RPM while you’re idling in traffic.
4. Upgrading Your Stator Alone Will Solve Power Issues
Reality: Skip the R/R and wiring upgrades at your peril.
High-output stators (like Rick’s Motorsport’s 200W units) sound tempting, but they’re half the battle. Pair them with a stock R/R, and you’ll just shift the failure point. As one KTM owner learned: “My new stator fried the OEM R/R in 300 miles—it couldn’t handle the heat.”
Modern MOSFET or series-type R/Rs (like Shindengen’s FH020AA or SH847) run cooler and smarter. And don’t ignore wiring—bypassing factory connectors with heavy-gauge wires is a pro move to prevent voltage drop and melted plastic.
5. LED Lights Don’t Save Enough Power to Matter
Reality: Swapping halogens for LEDs can free up a small powerplant’s worth of juice. Let’s math it out:
- A 55W halogen headlight vs. a 20W LED saves 35W.
- Replace incandescent brake bulbs (21W) with LEDs (1.6W), and you’ve banked another 19W.
That’s 54W saved—enough to run heated grips and a GPS without taxing your stator. Denali’s D4 LED pods (89W for a pair) are popular, but even bargain AliExpress LEDs (tested by riders) slash draw by 60%.
6. If Your Battery Dies, It’s Always the Battery’s Fault
Reality: Your charging system is probably the culprit.
A dead battery is often a symptom, not the cause. Use a multimeter to check:
- Static voltage (engine off): Below 12.4V? Weak battery.
- Charging voltage (at 5,000 RPM): Should hit 13.5V–14.8V. Too low? Blame the stator or R/R. Too high? Faulty regulator.
One Triumph owner shared: “I replaced three batteries before testing my stator—turns out it was producing 10V AC instead of 70V.”
7. Heat Is Just Part of the Ride—Nothing You Can Do
Reality: Smart upgrades and maintenance can cool things down.
Heat kills stators and R/Rs, but you’re not helpless:
- Ditch shunt R/Rs: MOSFET units (like those from Shindengen) waste 70% less heat.
- Improve airflow: Relocate R/Rs away from engine blocks or fairings. Harley riders often mount them on crash bars.
- Synthetic oil: Reduces internal stator temps in oil-bathed engines.
Series-type R/Rs (which disconnect the stator when not needed) are the gold standard. One BMW GS owner reported: “Switched to a SH847—stator temps dropped 40°F on long tours.”
The Bottom Line
Motorcycle charging systems are a delicate dance of physics and practicality. They’re not “alternators“ in the car sense, they hate being misunderstood, and they’ll punish lazy upgrades.
Whether you’re running a vintage Honda CB or a Ducati Multistrada V4, respect the stator-R/R partnership, monitor voltage like a hawk, and let LEDs light the way to electrical freedom.
